Squarebody Speaker Sizing Guide

If you've ever pulled a door panel off a Squarebody expecting a quick speaker swap, you already know how this goes. A speaker sizing guide matters for these trucks because they were built in an era when factory audio was basic, speaker locations varied by year and trim, and "should fit" usually means "grab the drill and start measuring."

The good news is that upgrading sound in a 1973–1991 Chevy or GMC truck isn't complicated once you know what you're actually working with. The trick isn't just speaker diameter. It's location, mounting depth, grille clearance, panel material, and whether you want to keep the truck looking mostly stock or build it around better sound. If you want the big-picture overview of every speaker location first, start with the best Squarebody speaker upgrade options. This guide is about sizing specifically.

There's No Single Squarebody Speaker Layout

The first thing to understand is that there's no single speaker layout across every pickup, K5 Blazer, Jimmy, and Suburban. Trim level, body style, previous owner modifications, and aftermarket panels all change the conversation fast.

Factory setups were often light on speakers to begin with. Some trucks had a single dash speaker. Others had dual dash speakers, or speakers in the doors, rear side panels, or cab corners depending on model and year. That means your truck may not match what somebody else swears is "factory correct." Measure your own truck instead of trusting a forum post about someone else's.

Dash Speaker Sizes (This Is Where It Varies Most)

The dash is where a lot of Squarebody owners start, especially if they want better sound without cutting doors. But this is exactly where the "what size is it?" question has no single answer — it depends on your year and whether the truck came with a mono or stereo factory radio.

Earlier trucks typically ran a single center 4x10 dash speaker as a mono setup, with no cutouts on the sides of the dash. Later trucks added a 3.5" round speaker on each side of the dash for the factory stereo setup. So depending on the year, your factory dash location is either one wide 4x10 in the center or a pair of 3.5" rounds out toward the corners. Neither is "wrong" — they're just different eras of the same platform.

Two real fitment warnings here that trip people up constantly:

• The 4x10 magnet problem. The factory 4x10 used a small magnet. Most aftermarket 4x10s come with big 40-ounce magnets that won't fit the factory mount — the magnet hits the cab wall behind the dash. Measure before you buy.
• The 3.5" dash-pad problem. The factory 3.5" round speakers sit nearly flush with the dash frame. A lot of aftermarket 3.5s have a taller profile, and that raised height keeps the dash pad from setting back down where it belongs. Look for a shallow, flush-mount speaker — factory dash speaker replacements for these trucks run around 1.1 inches of mounting depth.

A dash speaker can work fine for a stock-style refresh, but don't expect the dash alone to carry the whole system, especially in a truck with road noise, mud tires, and old weatherstripping. Treat it as a clean-up of the highs and vocals, not the foundation.

Door Speaker Sizes

Door speakers are where most real gains happen. A lot of Squarebody owners move to 6.5" speakers in the doors because that size strikes a good balance between sound quality, availability, and fitment. That said, a bare metal door shell and a finished door panel are two different things. Even if the metal can accept a speaker, the panel may not.

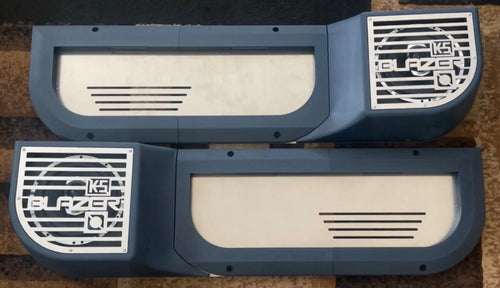

This is why purpose-built door speaker panels matter. A clean panel saves you from hacking factory trim, fighting crooked universal pods, or finding out your window regulator hits the speaker magnet halfway down. The Blazin' Biddles Offroad Door Speaker Panels are built specifically for 6.5" coaxial speakers — that's the size they're designed around, and they drop into 1973–1991 front doors without cutting up the interior. If you want the full rundown on that route, we cover it in Squarebody door speaker panels that fit right.

Now, if you want to run a different size — 5.25s to stay tighter to the panel and avoid depth issues, or 6x9s for more output — you absolutely can, but that means building your own panels or going custom. Our panels are 6.5"-specific by design. Plenty of guys fabricate their own setups for whatever size they want, and that's a legitimate path if you've got a specific speaker in mind. Just know that going bigger or oddly-shaped usually pushes you further from a simple, clean install and deeper into custom work.

Rear Speaker Locations

Blazers, Jimmys, crew cabs, and Suburbans open up more rear speaker options than a regular cab pickup. Depending on the truck, you may have room in rear side panels, cab corners, or custom enclosures. Common sizes back there are 6.5" speakers, though 6x9s show up in custom rear panel work.

Rear fill can help balance the system, but it depends on how you use the truck. If your Squarebody is mostly a trail rig, work truck, or windows-down cruiser, front-stage sound usually matters more than stuffing speakers everywhere. More speakers don't automatically mean better sound — build the front first.

What Actually Determines Fitment

A speaker can be the right diameter and still be totally wrong for the truck. That's where most install headaches start.

Mounting Depth

Depth is the big one. Squarebody doors and dash locations weren't designed around modern high-performance speakers with oversized magnets. Before buying anything, measure the depth from the mounting surface to the nearest obstruction — usually the window track, regulator, or inner door structure in the doors, or the cab wall behind the dash. A shallow-mount 6.5 may fit where a standard-depth 6.5 won't. That sounds obvious, but it gets overlooked all the time because people focus only on the cutout diameter.

Cutout Diameter and Frame Shape

Not every 6.5" speaker uses the exact same basket shape. Some frames are more compact, some have wider mounting tabs, some need more room than the label suggests. If you're using an aftermarket panel, check the actual cutout size instead of assuming every speaker in that category is interchangeable.

Grille and Panel Clearance

Speaker depth works both ways. You need room behind the panel and in front of it. If the grille or cone sits too proud, it can interfere with the door panel or armrest area, or just look unfinished. This matters even more on trucks that see real use, where boots, knees, and gear bags are constantly bumping interior panels.

Window Travel and Hardware

Roll the window all the way down before you call any door speaker setup finished. A lot of Squarebody installs look great until the glass comes down and finds the back of the speaker. Manual window hardware can also complicate panel shape and speaker placement.

Choosing the Right Size for How You Use the Truck

This is where a lot of generic audio advice falls apart. A Squarebody that spends weekends crawling trails and getting hosed out after a muddy trip needs a different approach than a restored short-bed with fresh carpet and a mostly stock interior.

If you want a mild upgrade and stock-ish appearance, keep the dash involved and use door speakers only if you have a clean panel solution. If you want stronger sound that keeps up with exhaust and highway wind, 6.5" door speakers are usually the sweet spot. If preserving original interior panels matters most, be honest about your limits before you cut anything — once factory trim is gone, it's gone. But if the truck is built to be used, a well-designed speaker panel that solves fit and function is often smarter than forcing a stock panel to do a job it was never built for.

Coaxial or Component?

For most Squarebody owners, coaxial speakers are the practical choice. They're simpler to install, easier to package, and more than capable of sounding good in an old truck. A quality 6.5" coax in the doors with decent dash support can transform the cab without turning the project into a full custom build.

Component sets can sound better when installed correctly, but they bring more complexity — placing separate tweeters, hiding crossovers, and thinking through staging in a cabin that was never designed for modern audio. If you enjoy that part of the build, go for it. If you just want clear music on the road and trail, coaxials are usually the better fit.

Common Mistakes in Squarebody Speaker Upgrades

The biggest mistake is buying by size alone. The second is assuming universal parts will fit cleanly in a platform that has its own quirks. The third is chasing huge speakers when a properly installed moderate-size speaker would perform better.

Skipping sound treatment is another one. A Squarebody door is basically a metal echo chamber — even a good speaker can sound thin or rattly if the door structure isn't tightened up. A butyl sound deadener kit goes a long way here without needing to overbuild it. Power is another trade-off: a new head unit alone can run many speakers fine, but if you want serious output with the windows down, an amp makes a real difference. Match the system to your goals instead of overbuilding a setup that road noise will drown out anyway.

A Practical Way to Plan Your Setup

Start with the truck in front of you, not a forum post from ten years ago. Check what locations your cab actually has, measure cutout and depth, and decide whether you want to preserve stock panels or use upgraded ones built for speakers.

From there, choose the speaker size that fits the space and your use case. For most builds, that means keeping the dash functional and adding 6.5" door speakers through a panel built for the truck. If door depth is tight, drop to a shallow-mount speaker or a 5.25" option instead of forcing a bad fit. That's really what a good audio upgrade comes down to on these trucks — not the biggest speaker you can cram in, but the right speaker in the right place, mounted cleanly, with enough room to work like it should. When your speaker setup matches the truck instead of fighting it, the whole cab feels more finished every time you turn the key.
