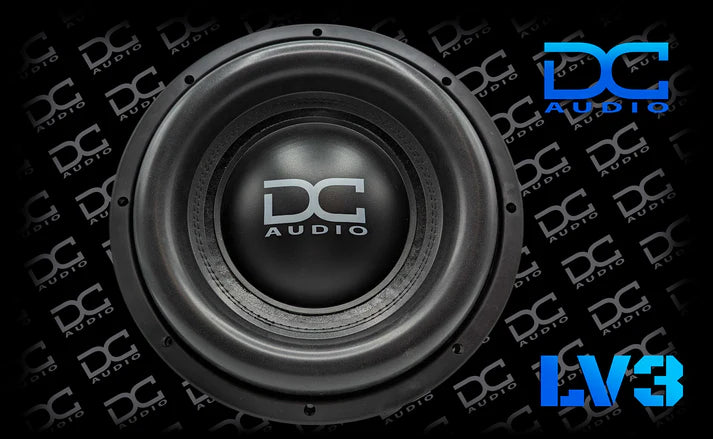

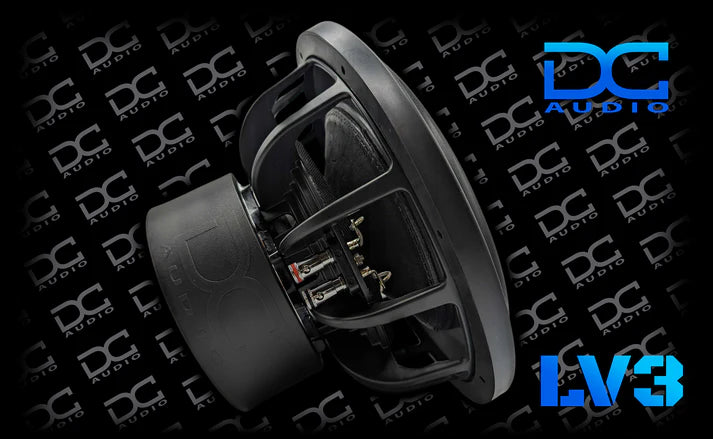

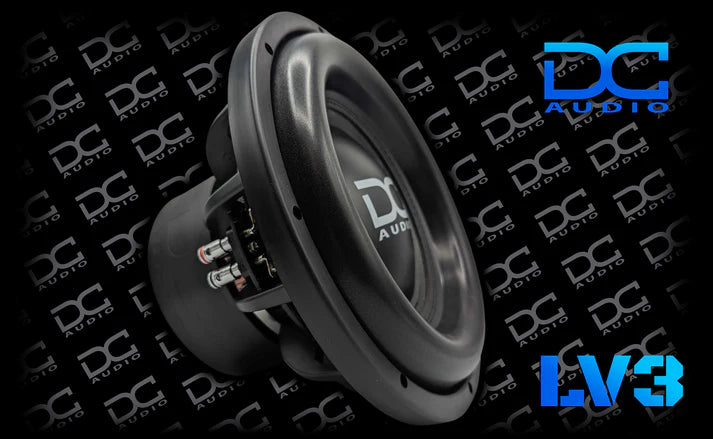

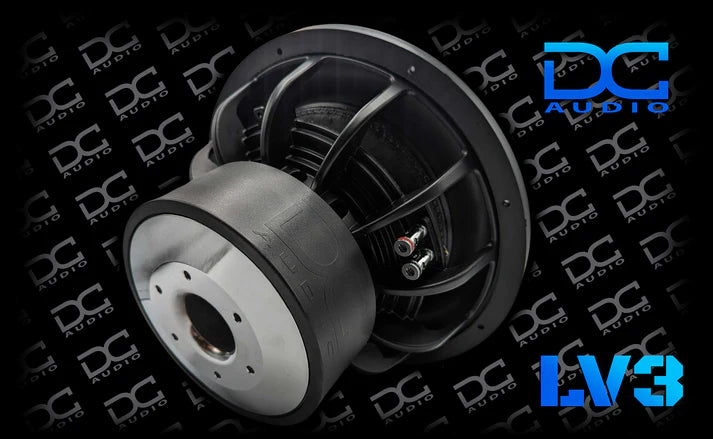

DC Audio Level 3 Subwoofer (M4) – 1000W RMS 10” / 12” / 15” / 18” – Hand Built in the USA

Hand Built in the USA

Build Time: 7–14 Business Days

The DC Audio Level 3 (M4) is the ultimate daily driver subwoofer. Designed to deliver deep low-frequency output with serious authority, the Level 3 balances musical response with high-output capability.

Whether sealed or ported, this sub is engineered to move air while staying controlled.

🔥 1000 Watts RMS – Real Power Handling

• 1000 Watts RMS

• 2000 Watts Peak

• Available in Dual 1Ω, Dual 2Ω, and Dual 4Ω

• 10”, 12”, 15”, and 18” models available

Perfectly matched with:

• PS-1000x1

• PS-2000x1

• PS-3000x1 (for multiple subs)

• PS-8000x1 (competition builds)

🧠 Advanced Motor & Cooling Design

The Level 3 features a 2.5mm aluminum shorting ring (demodulation ring) that:

• Reduces inductance

• Lowers distortion

• Reduces power compression

• Pulls heat from the voice coil windings

• Acts as an internal heat sink

Combined with direct-to-coil venting, airflow cycles across the coil and aluminum ring simultaneously — improving cooling under heavy load.

💪 Motor & Suspension System

• Triple stacked FEA-optimized motor

• Deep gap motor structure

• 22.5mm Xmax

• 3” High-temp aluminum voice coil

• Dual upgraded progressive spiders

• Multilayer polymer foam surround

• Extremely rigid non-pressed paper cone

• Cast aluminum frame (no invert mount)

• Chrome spring-loaded push terminals

• Extra heavy-duty sewn tinsel leads

• Rubber DC/LV3 embossed magnet boot

• Rubber mounting gasket

This sub is built to take abuse and keep playing.

📊 Technical Specifications

📦 Recommended Enclosures

🔹 Sealed

• 10” – .65 cu ft

• 12” – 1.0 cu ft

• 15” – 2.0 cu ft

• 18” – 3.5 cu ft

🔹 Ported

• 10” – 1.0 cu ft

• 12” – 1.25 cu ft

• 15” – 3.0 cu ft

• 18” – 5.5 cu ft

(Per subwoofer)

🎯 Ideal For

• Loud daily drivers

• Deep low-frequency builds

• Sealed SQ systems

• Ported high-output systems

• Multi-sub setups

• Street bass builds

This is DC’s most balanced daily-driver sub.

📦 What’s Included

• DC Audio Level 3 Subwoofer

• Rubber Mounting Gasket

• DC Embossed Magnet Boot
