Built for Squarebody Owners Who Want Real Door Speakers Without Making Their Interior Look Cheap
Our Version 3 lower door speaker panels are built for 1977–1991 Chevrolet and GMC Squarebody trucks, including pickups, Blazers, Jimmys, Suburbans, and crew cabs.
These are not universal speaker pods. They are designed to add real door speakers while giving your Squarebody a cleaner, more finished interior. Choose the panel color, grille design, speaker package, lighting option, and metal finish that fit your build.

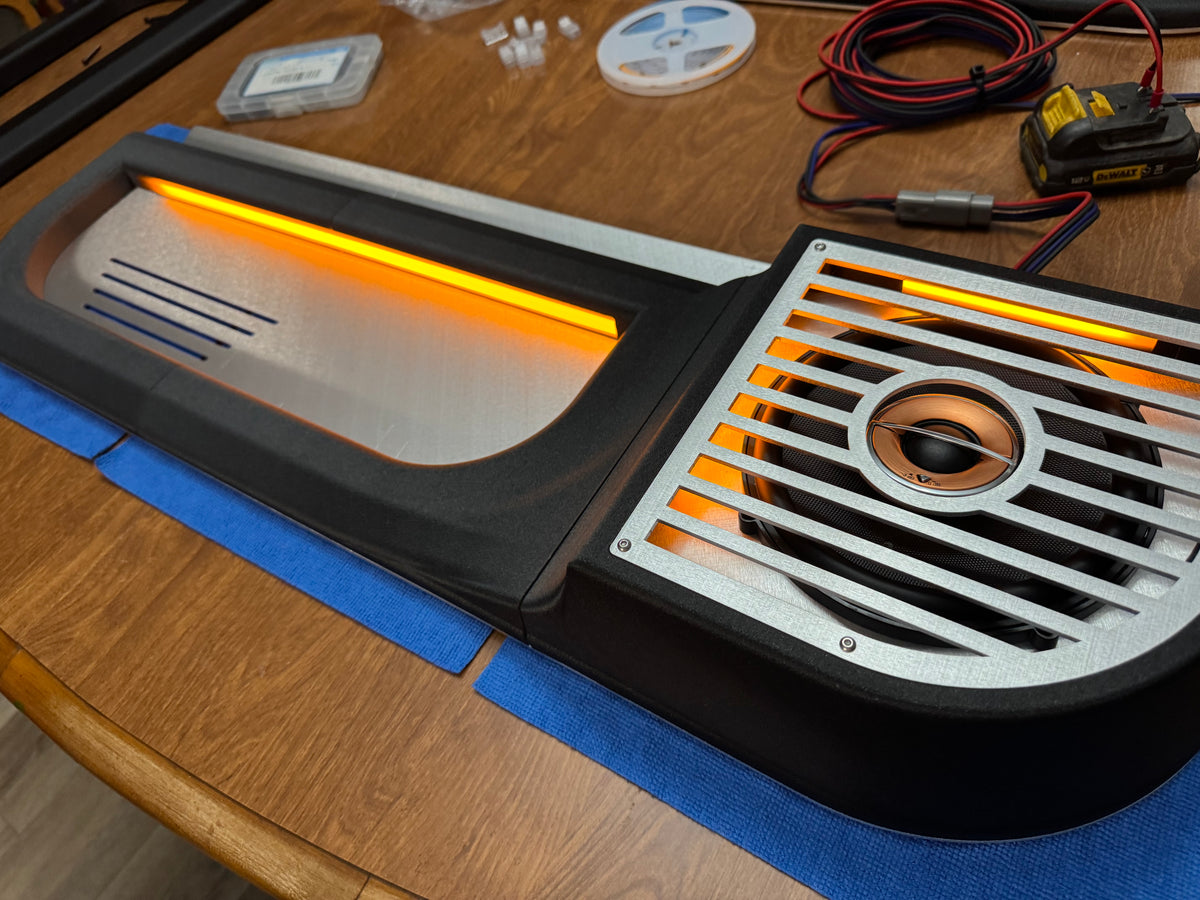

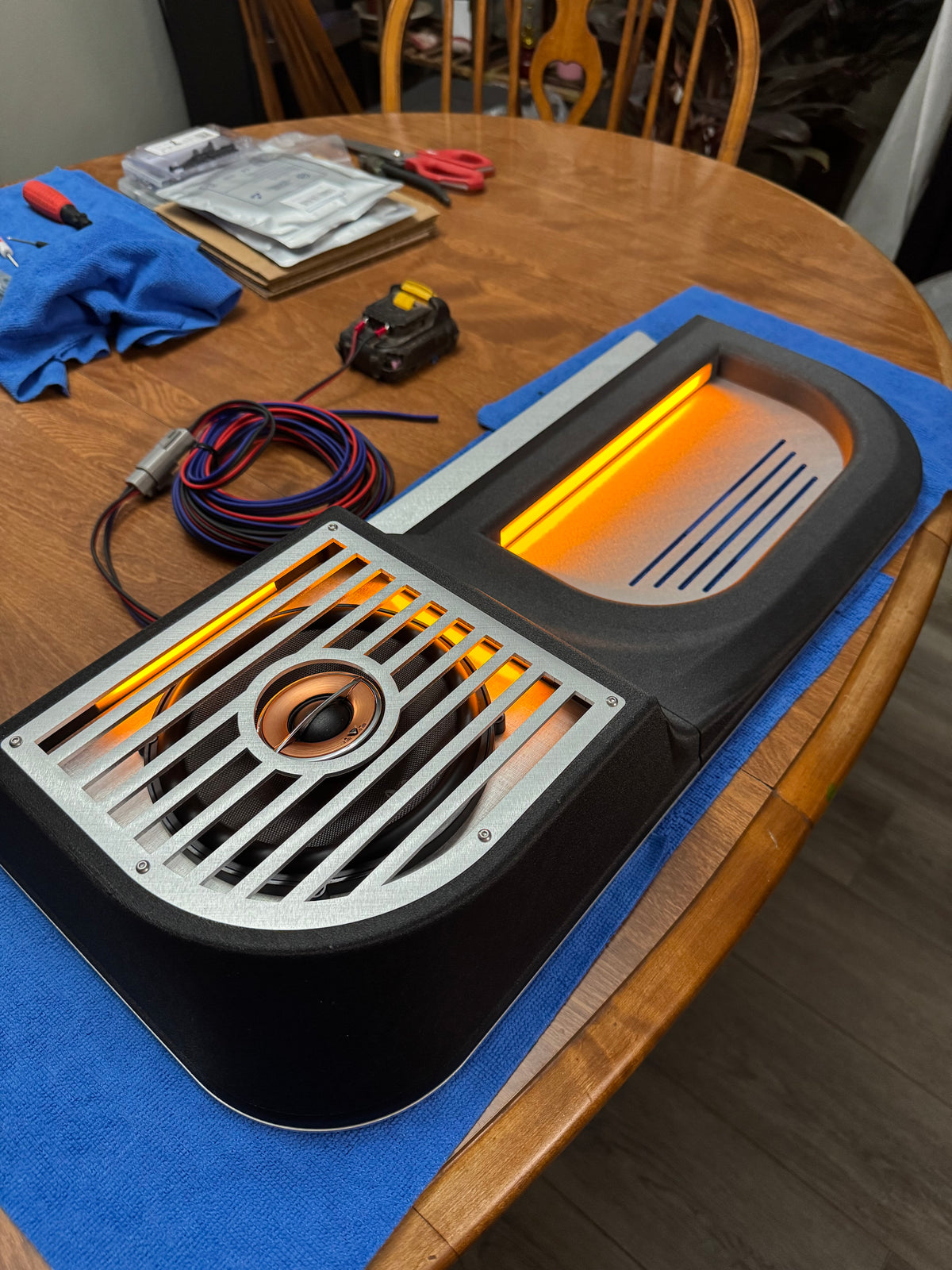

Version 3 is our most customizable setup yet, featuring a slimmer 3.5-inch overall panel depth, more metal finishes, more lighting colors, more grille designs, and more speaker options.
What You Can Choose

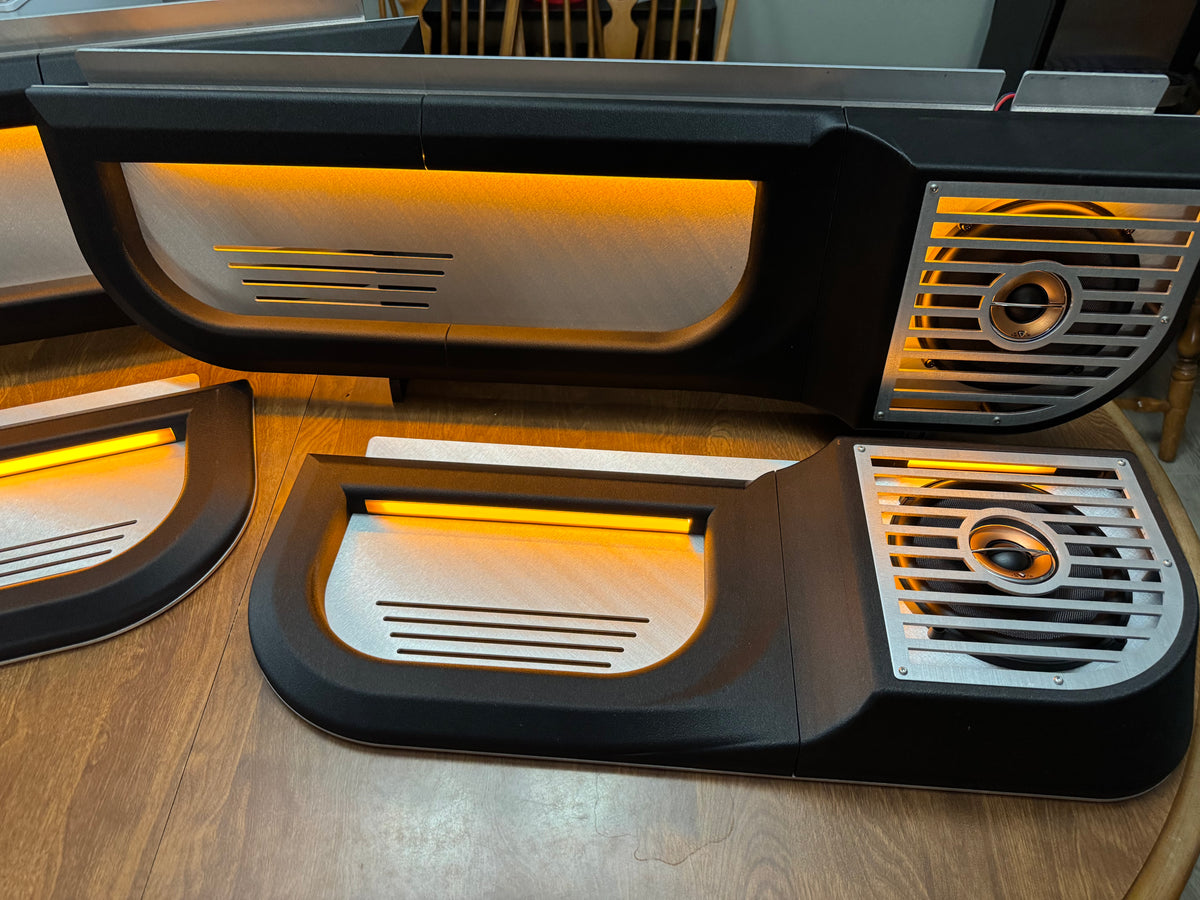

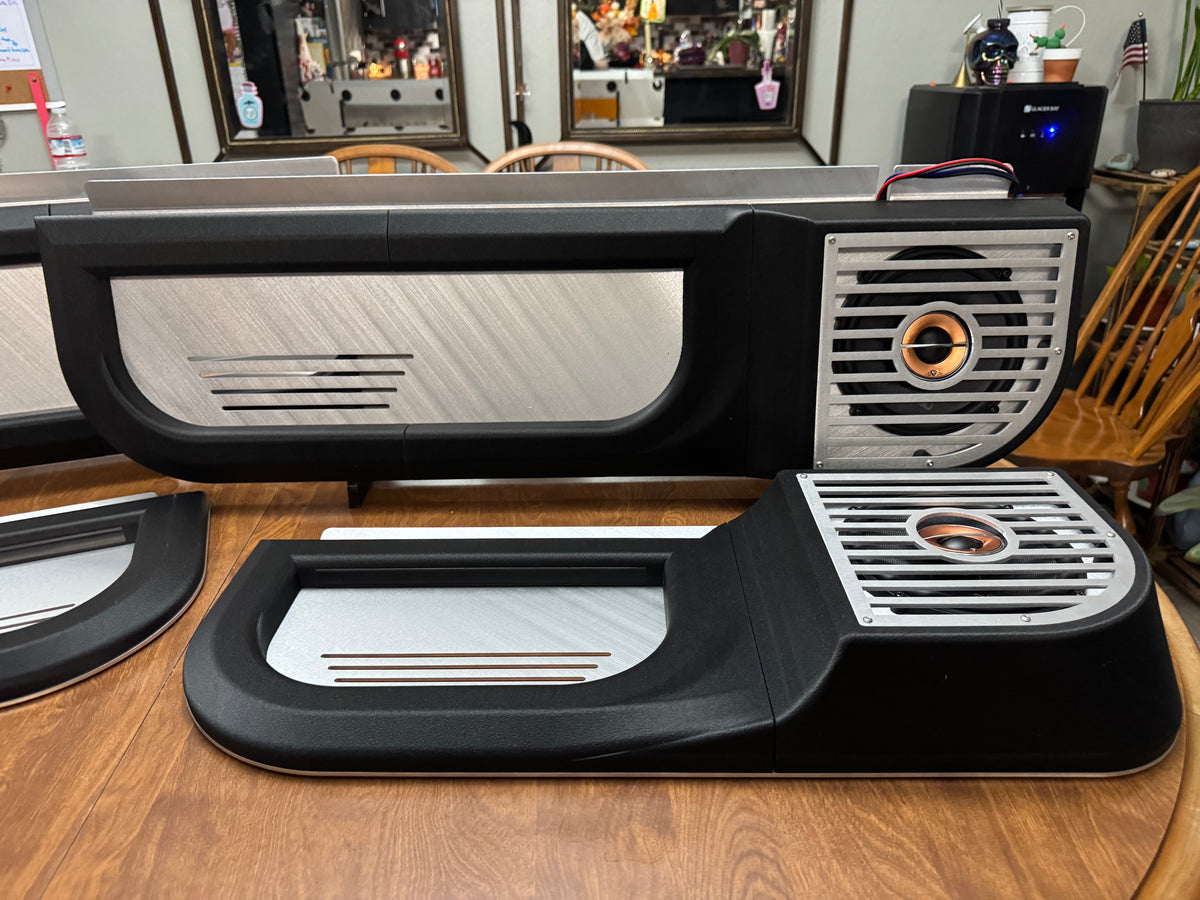

- Front-door, rear-door, or complete 4-door panel sets
- Bolt-on or magnetic mounting

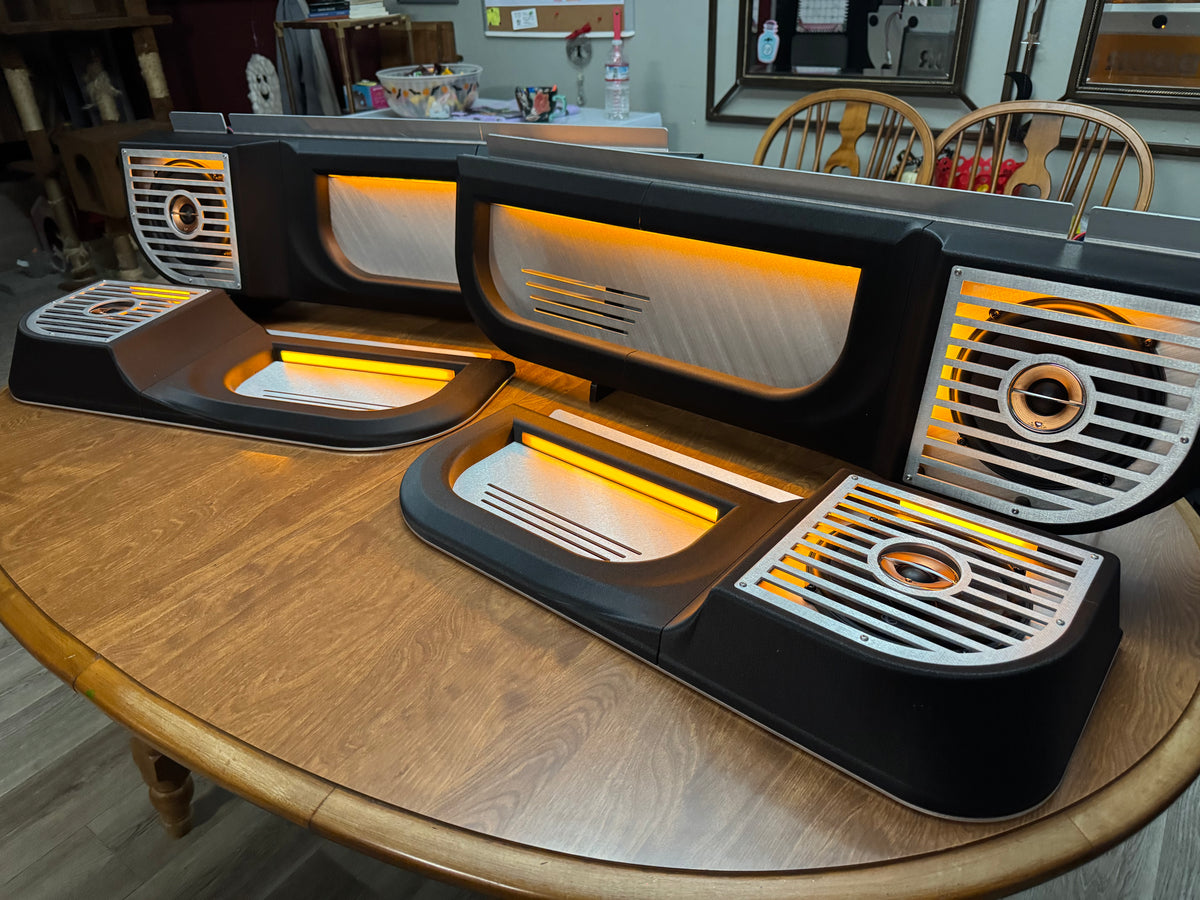

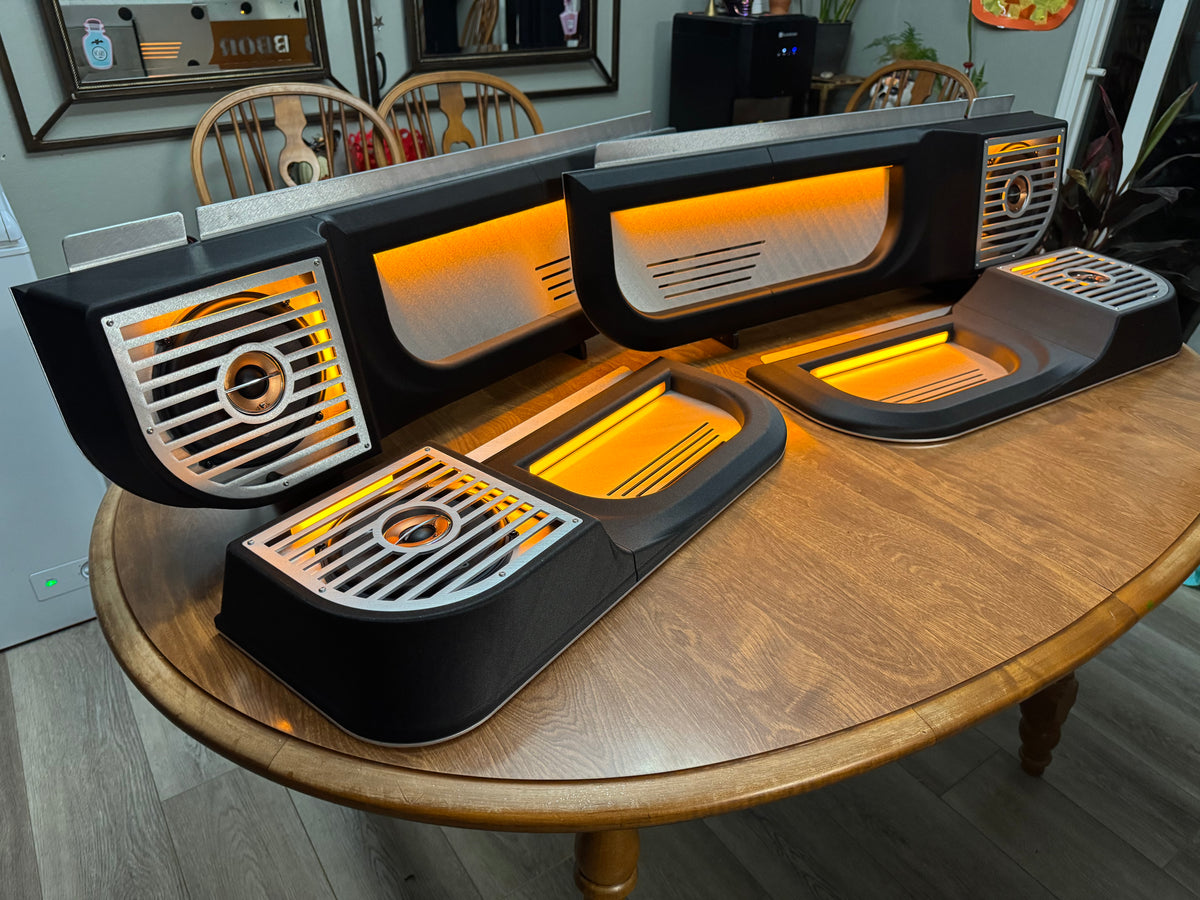

- Lighted or non-lighted panel configurations
- Brushed aluminum, black powder coat, white powder coat, polished aluminum, or 304 stainless steel
- Factory interior color options

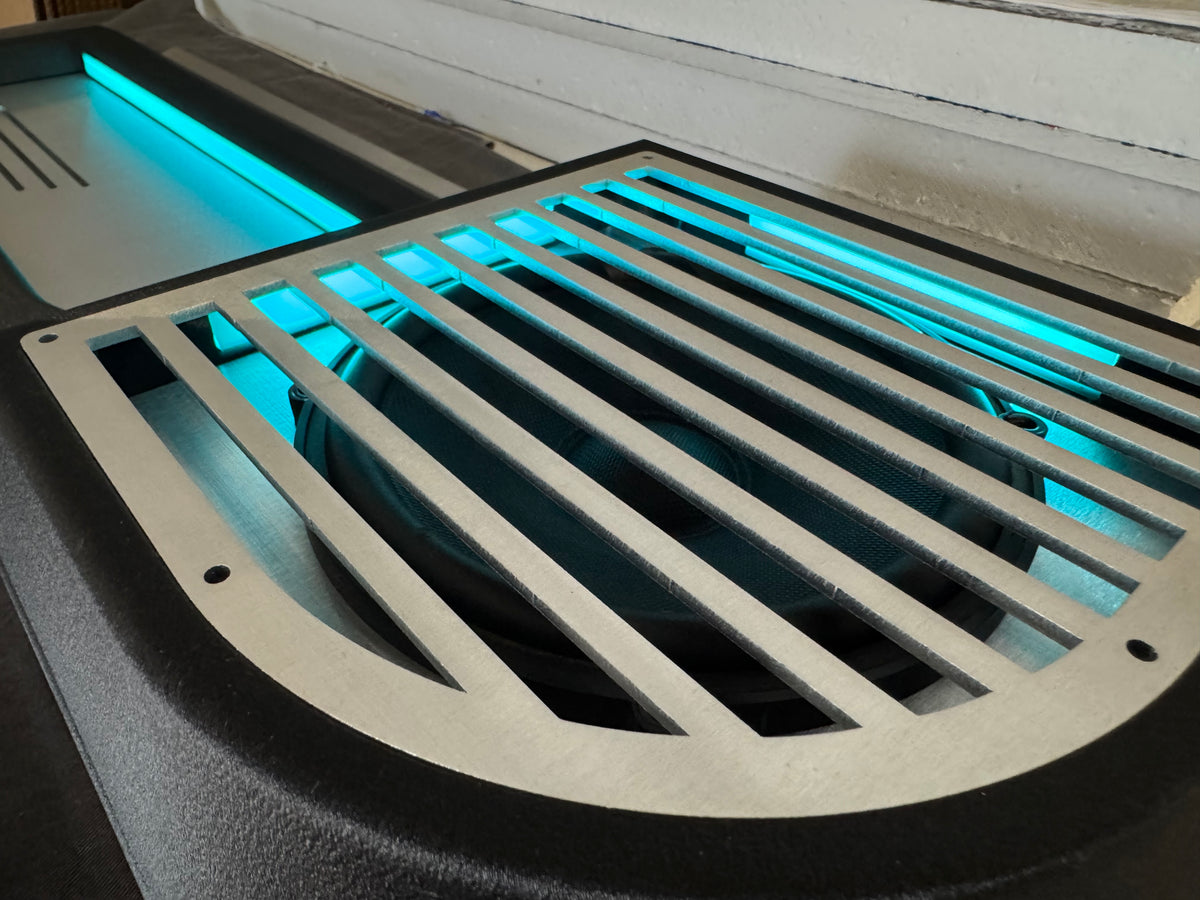

- 24 standard grille designs
- Your own custom grille design for an additional charge

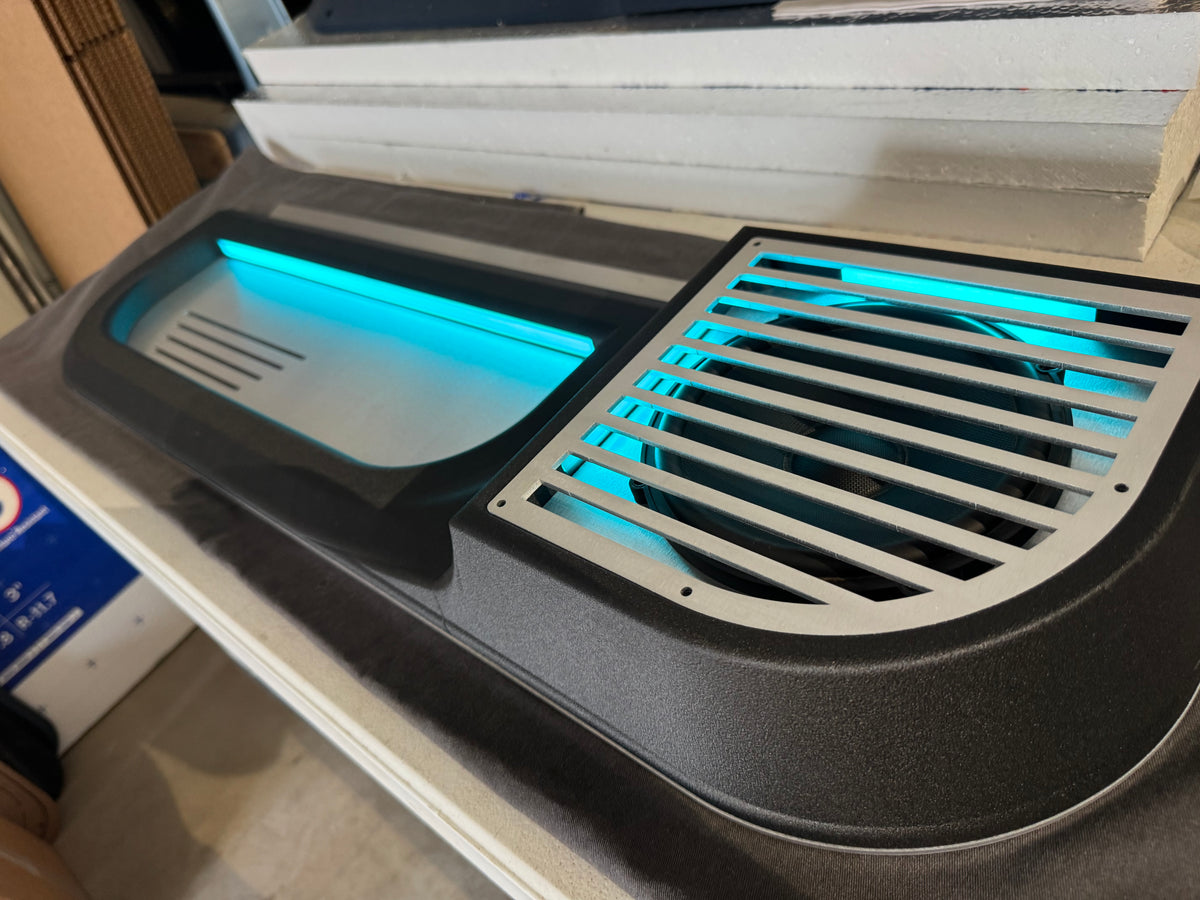

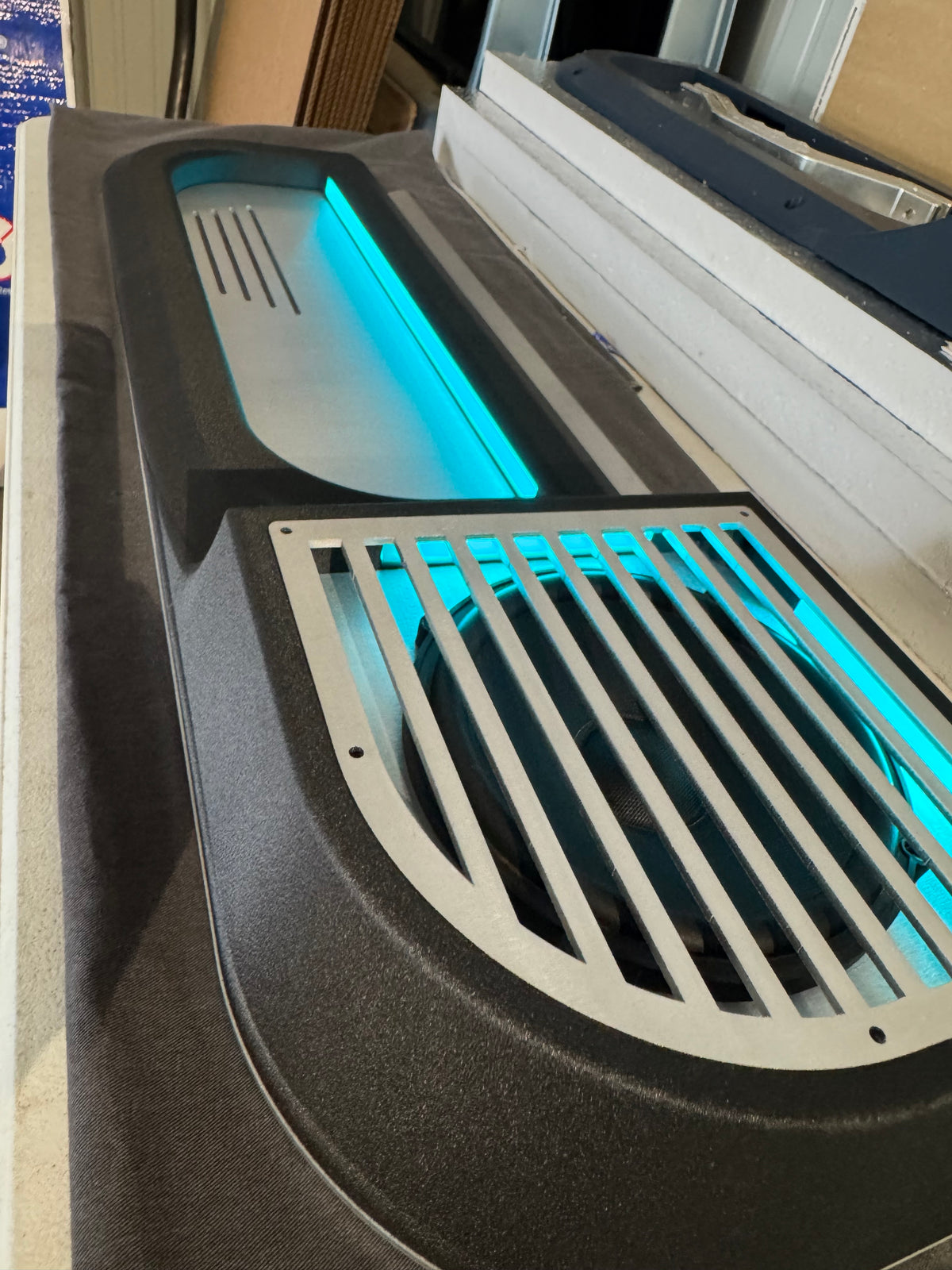

- Multiple lighting color options
- Available speaker packages, or select “None” and use your own compatible speakers

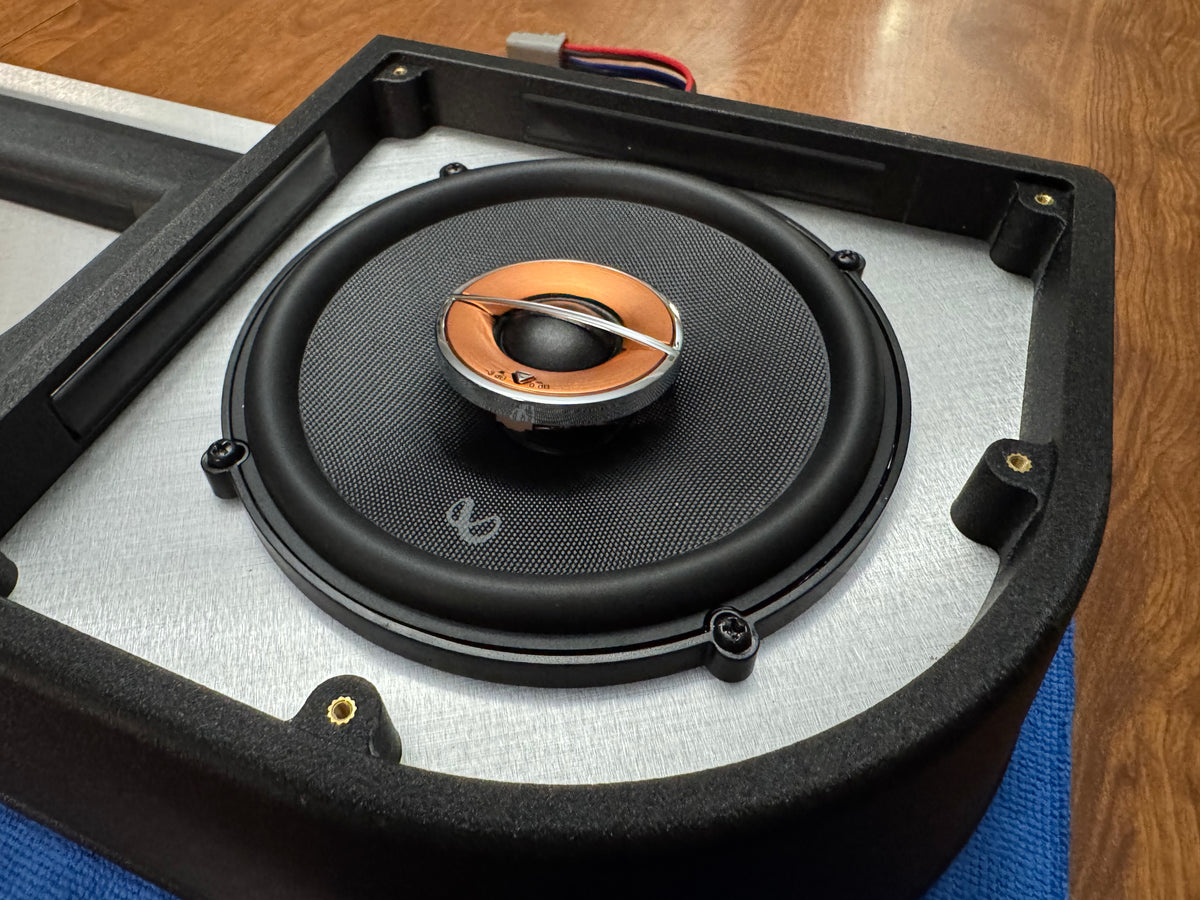

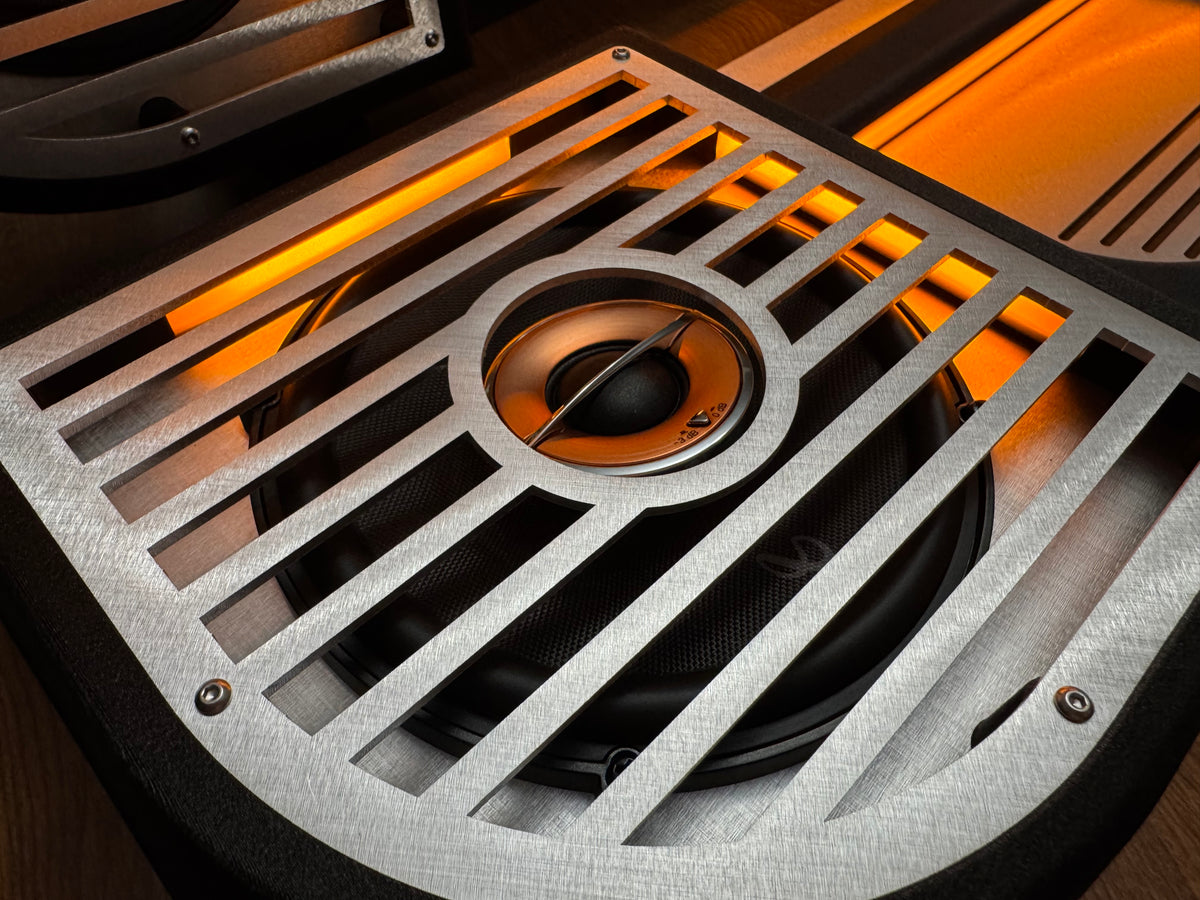

JBL Stadium and Infinity Kappa speaker options include the correct grille layout for their larger center tweeters.
Magnetic or Bolt-On Mounting

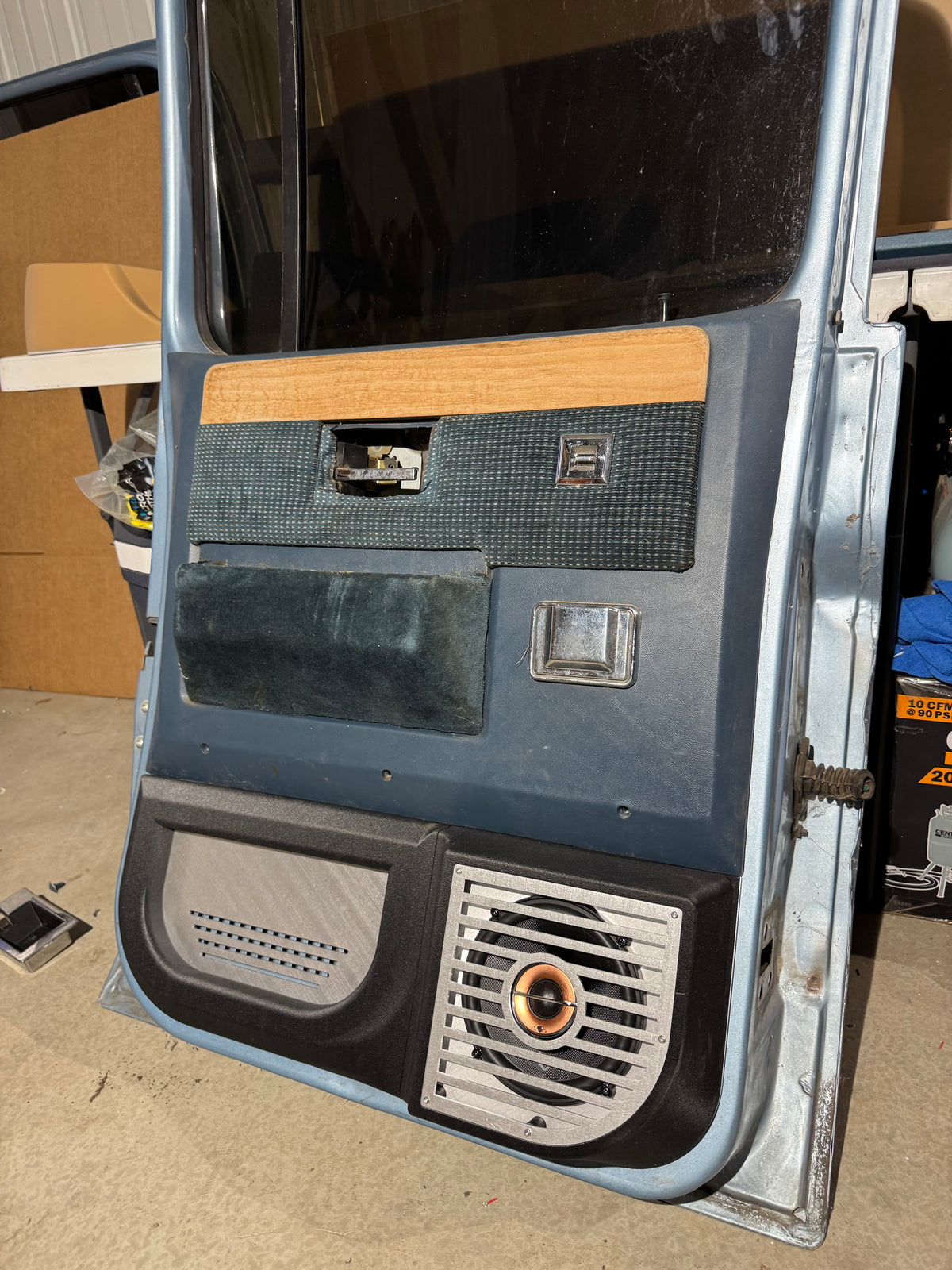

Choose bolt-on panels if you want a permanent mounted setup. Bolt-on panels install with screws or rivnuts and work with factory, repaired, textured, uneven, or non-flat lower door surfaces.

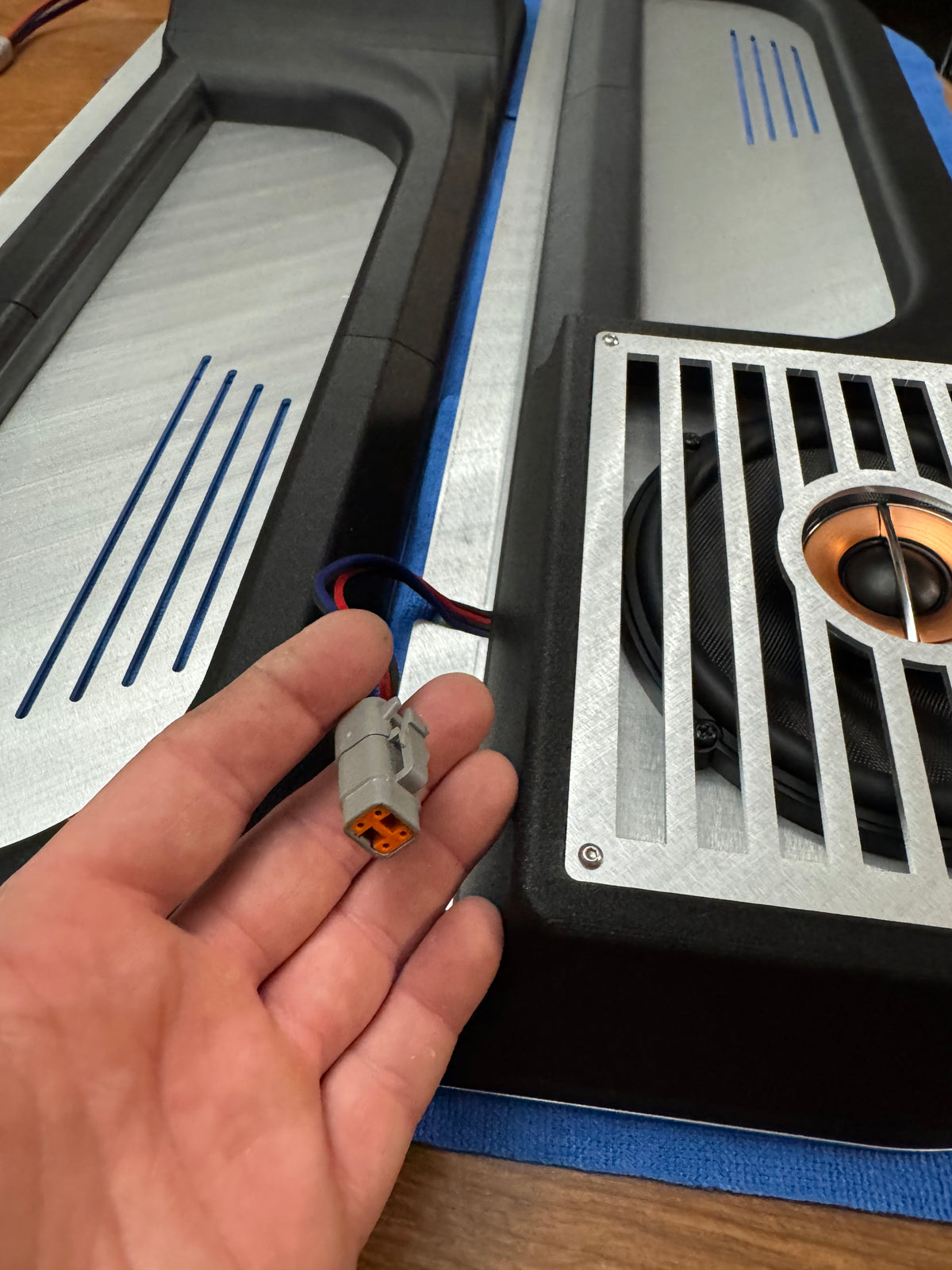

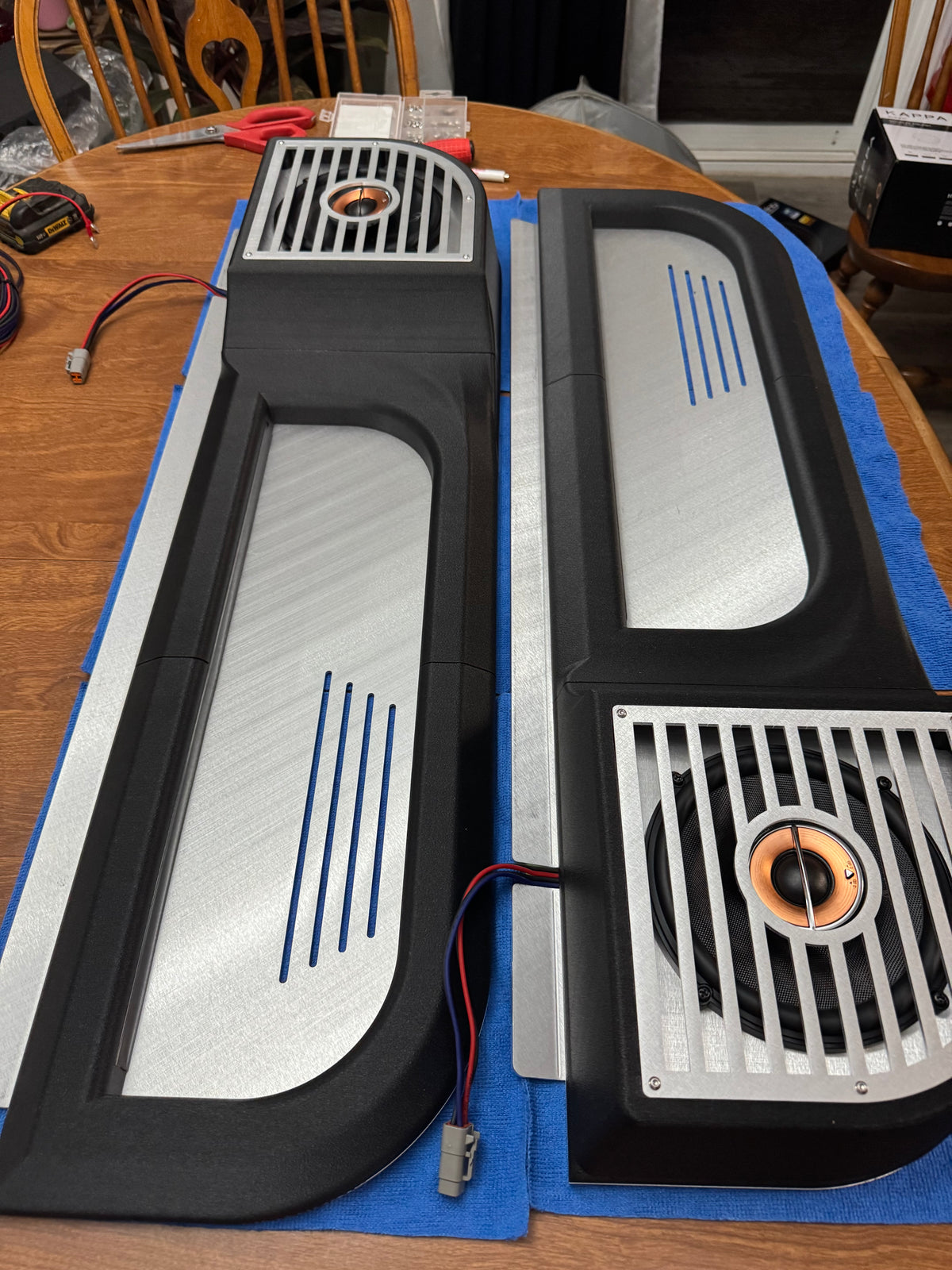

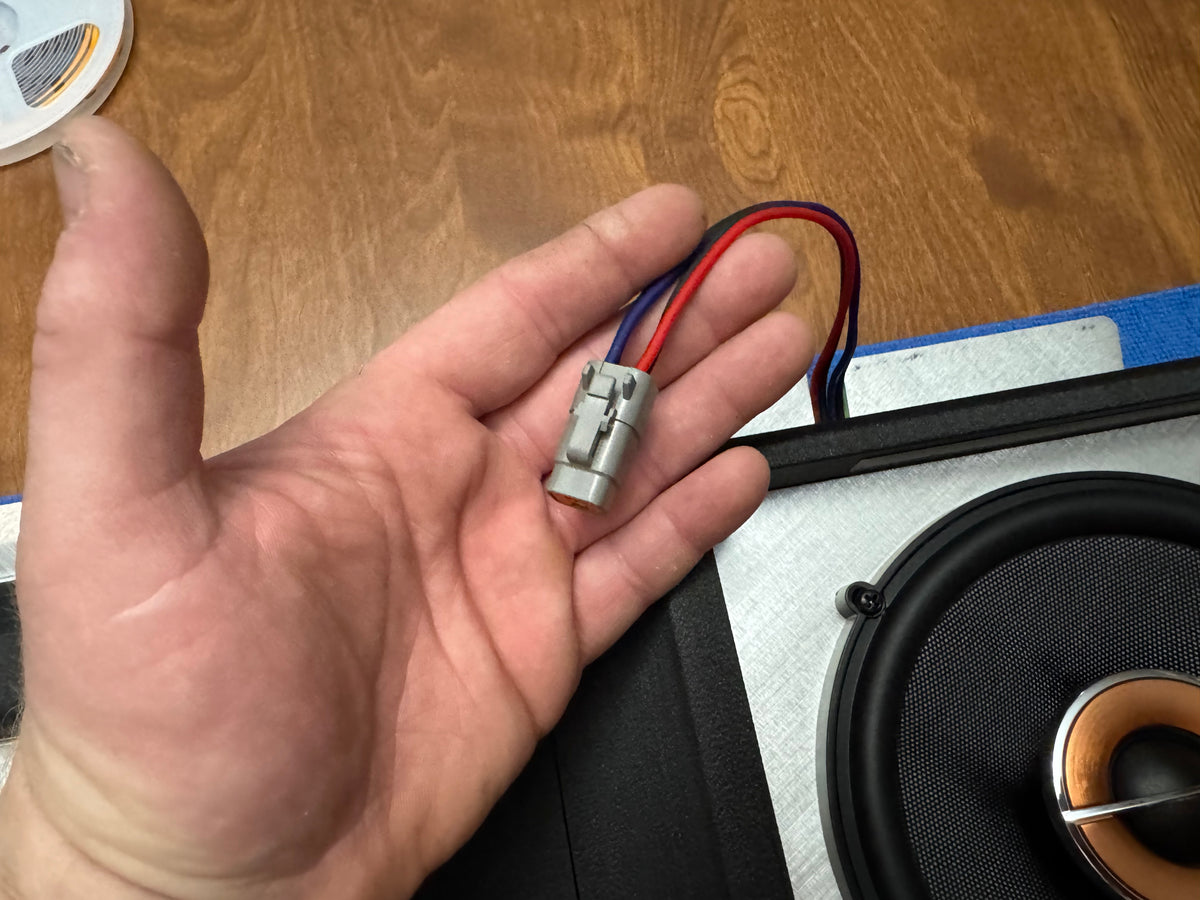

Choose magnetic panels for a no-drill mounting option. The upper hooked tab sits behind the upper door panel, while rubber-coated neodymium magnets secure the panel to the lower door. Wiring routes through a built-in channel and upward behind the upper door panel, so no mounting or wire holes need to be drilled.
Magnetic Panel Disclaimer
Magnetic panels are intended for off-road use and high-end show trucks. They require a clean, smooth, flat, straight painted lower-door surface for proper fitment and retention.
Magnetic mounting is not recommended for damaged, dented, warped, uneven, heavily textured, rusty, repaired, or non-flat door surfaces. If you are unsure whether your doors are suitable for the magnetic version, contact us before ordering.
Speaker Options and Fitment
Choose from our available speaker packages, or select “None” if you already have compatible speakers.

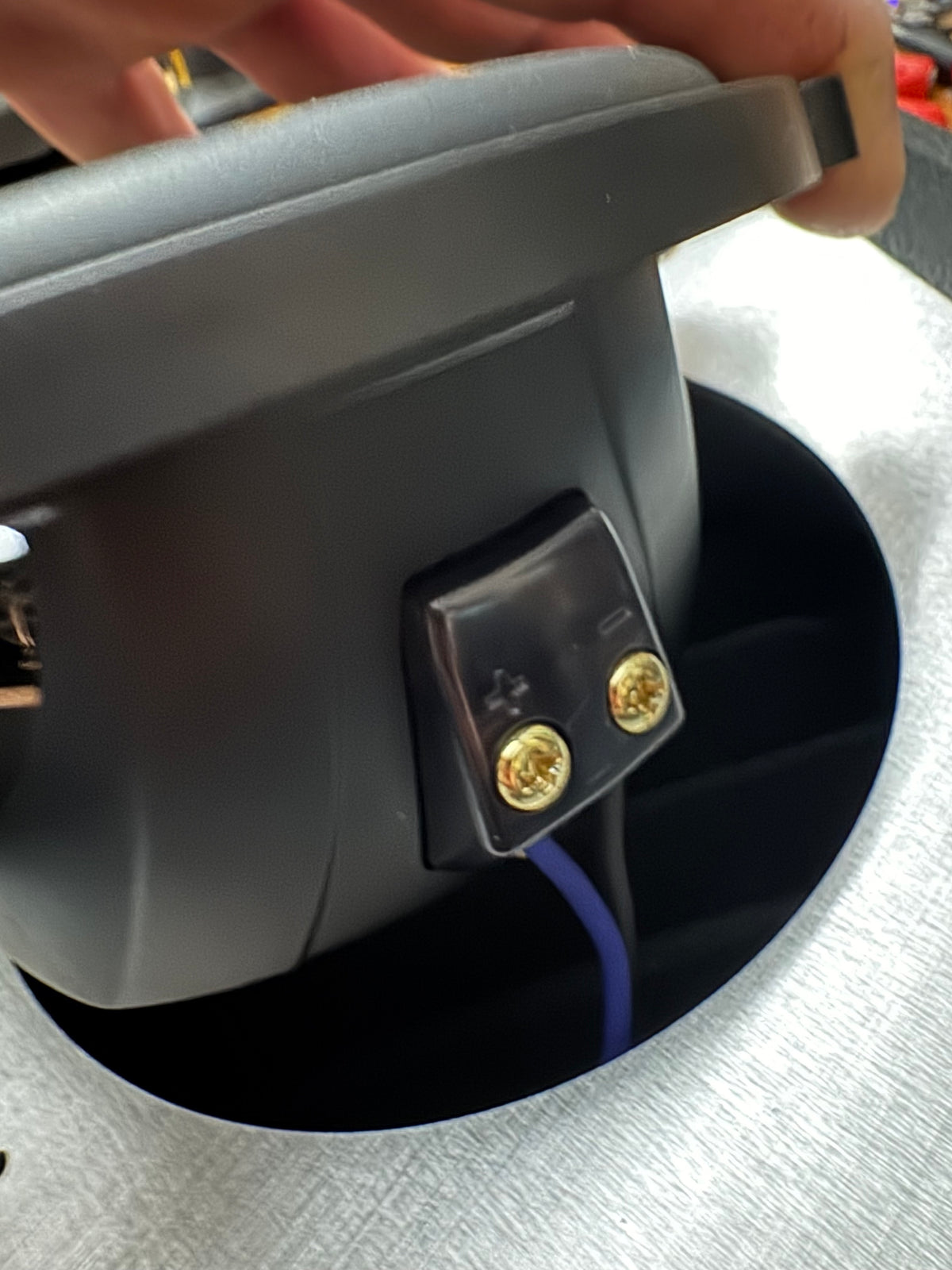

Front-door panels and Suburban rear-door panels are designed for 6.5-inch speakers. The panel has a 3.5-inch overall depth, which is different from the maximum speaker mounting depth.
- Maximum 6.5-inch speaker mounting depth: 2.4 inches
- Available 6.5-inch cutout diameter: 5.150 inches
- Available 6.5-inch cutout diameter: 5.625 inches
Crew-Cab Rear Door Note
Crew-cab rear door panels are slightly different from Suburban rear door panels. Because crew cabs have a rear floor hump that Suburbans do not, crew-cab rear panels use 5.25-inch speakers instead of 6.5-inch speakers for proper clearance and fitment.
If you are supplying your own speakers, confirm that they match your selected panel configuration, fit within the applicable mounting-depth limit, and use the correct cutout size. Contact us before ordering if you have questions about speaker fitment.
Pre-Order Information
This product is currently available for pre-order. All pre-orders have an expected fulfillment window of up to 90 days.
Every panel set is built to order. Fulfillment timing can vary based on order volume, selected options, material availability, and production scheduling.
Built to Order
Every set is built to order based on the options you choose. Before ordering, select your panel set configuration, mounting style, lighting option, metal finish, speaker option, interior color, grille design, and lighting color.

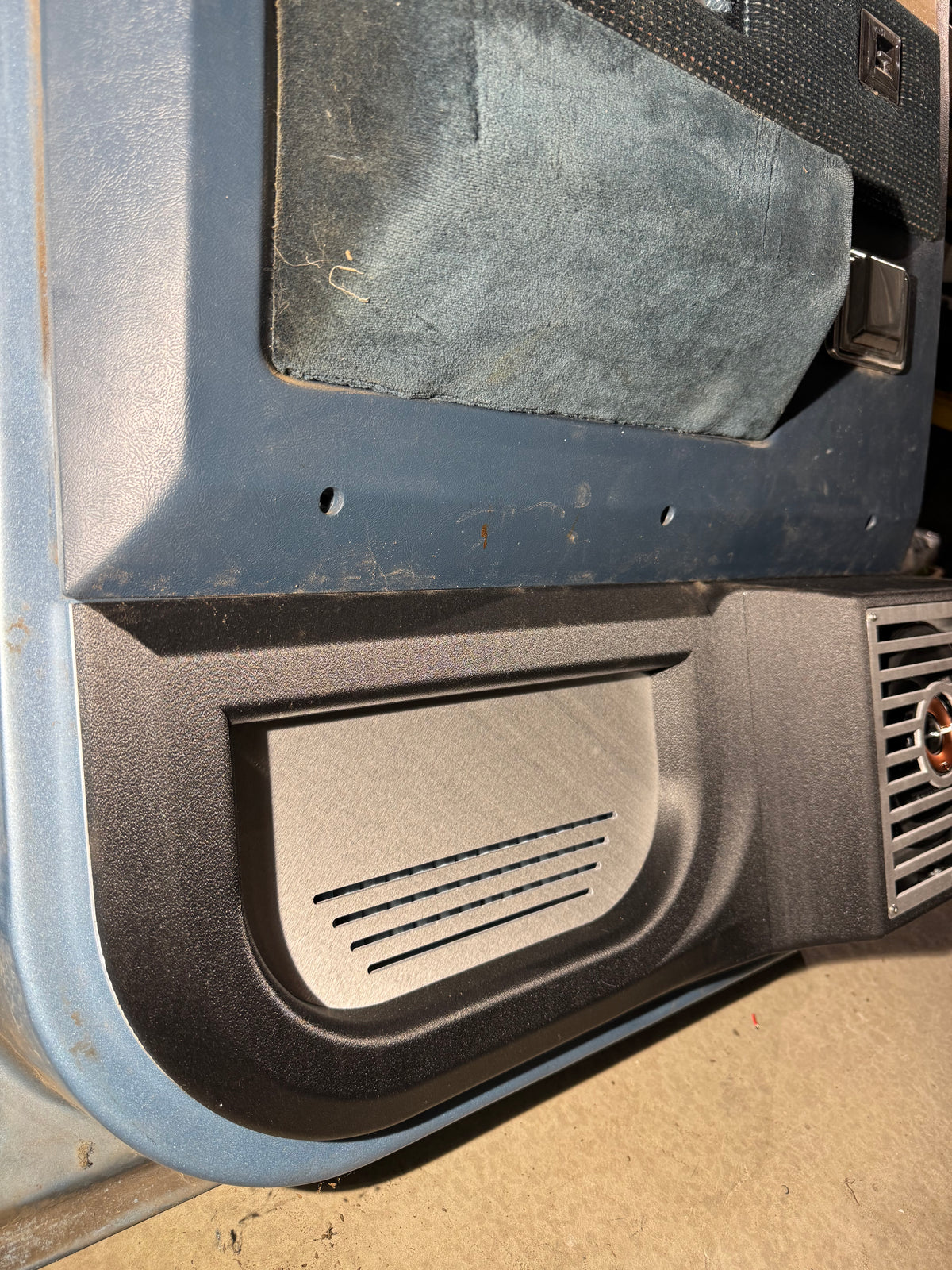

These Version 3 panels fit 1977–1991 Chevrolet and GMC Squarebody trucks, Blazers, Jimmys, Suburbans, and crew cabs within the selected front, rear, or complete 4-door configuration.
They do not fit 1973–1976 doors, which use a different upper door-panel design. If you have an aftermarket interior, non-standard doors, or questions about speaker fitment or magnetic mounting, message us before ordering.
