Why Your Squarebody Is Uncomfortable to Drive

Anybody who's spent a few hours behind the wheel of a Squarebody knows the feeling. Your back aches, your right arm has nowhere to go, your knees are up too high, and you keep shifting around trying to find a position that works. It's easy to write that off as "it's just an old truck." It isn't. Most of it is fixable.

The problem is that people usually try to fix it with parts instead of diagnosing what's actually wrong. They buy a seat, or a console, or a steering wheel, without understanding why the cab doesn't fit them. That's backwards. Before you spend a dollar, figure out where the truck and your body are fighting each other.

The Real Issue Is the Driver Triangle

Every vehicle has what's basically a driver triangle — the relationship between your seat, the steering wheel, and the pedals. When those three points are in the right places relative to your body, driving feels effortless. When they're off, your body compensates, and compensation over an hour turns into pain.

Squarebodies were designed around a different assumption of what a driver looks like and how they sit. Big steering wheel, upright column angle, a flat bench that puts your legs at an odd angle, and a low seating position relative to the pedals. None of that was wrong in 1978. It's just that a lot of us don't fit it well, and after 40 years the seat foam has collapsed and made it worse.

So the useful question isn't "what should I buy?" It's "where is the truck making me compensate?" Answer that, and you know exactly what to fix.

Start Here: Sit in the Truck and Pay Attention

Go sit in it. Not for ten seconds — sit like you're about to drive somewhere. Then work through this:

Where are your knees? If they're higher than your hips, the seat is too low or the cushion has collapsed. That angle puts strain straight into your lower back. If your knee hits the wheel or the column, the seat is too high or too far forward.

Where's your right arm? This is the one nobody thinks about. If there's nowhere natural to rest it — no armrest at a usable height — your shoulder holds it up for the entire drive. You'll unconsciously lean right, and now you're driving twisted. This is one of the most common and least diagnosed sources of Squarebody fatigue.

Are you leaning forward to reach the wheel? If your back leaves the seat back to steer, your core is doing work it shouldn't. That's a seat position or seat-back-angle problem, not a wheel problem.

Does your right foot stay relaxed on the throttle? If you have to hold your foot up or twist your ankle to reach comfortably, the seat height or fore-aft position is off.

Can you see over the hood without stretching? Sightline problems make you sit forward and up, which pulls you out of a supported position.

Whatever you found is your actual problem. Fix that, not the thing that's easiest to buy.

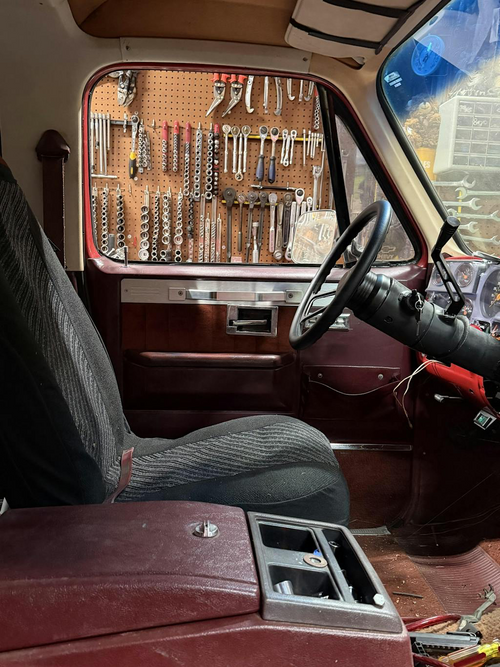

Fix Number One: The Seat Is Usually the Root Cause

If your knees are high, your back is unsupported, or you're sinking into the cushion, the seat is where you start. Everything else in the triangle is measured from the seat, so a bad seat throws off wheel reach and pedal reach at the same time.

On most of these trucks the frame is fine and the foam is dead. Rebuilding it restores more than people expect. Seat height and mounting angle matter as much as the foam itself — a good seat mounted wrong still feels bad. We go through all of it, including whether to rebuild or swap, in how to make Squarebody seats comfortable.

Fix Number Two: Your Arm Needs Somewhere to Go

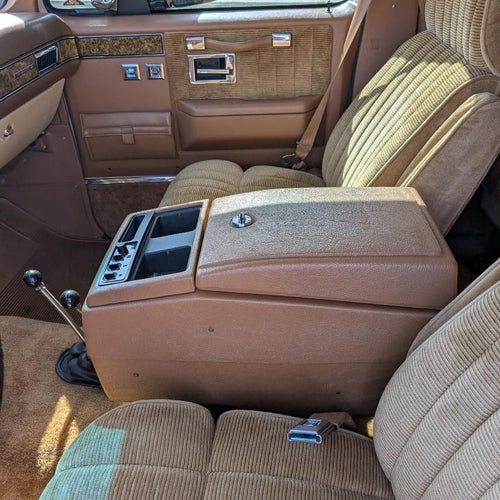

This is the fix that surprises people, because it doesn't feel like an ergonomic problem until you solve it. The factory center console in these trucks sits low. Low enough that it doesn't function as an armrest at all. Your left arm gets the door panel; your right arm gets nothing.

So you either hold your right arm up, or you drape it somewhere awkward, or you lean toward it. Over a two-hour drive, that's a twisted spine and a sore shoulder. Raising the console to a proper armrest height puts your arm where it belongs and squares your shoulders back up.

On 1981–1991 Blazers, Jimmys, and Suburbans, the 5" Console Lift does exactly that — brings the factory console up to a usable armrest and reach height. It's a direct bolt-in that reuses your factory brackets and bolts, no drilling, and it's reversible. There's a full comparison of what it fixes and what stock does better in console lift versus stock console.

Fix Number Three: Stop Reaching for Things While You Drive

Ergonomics isn't only about how you sit. It's also about what you have to reach for and how far. Every time you take a hand off the wheel to fish for a phone, a drink, or something sliding across the bench, you're leaving your driving position — and on rough ground, that's more than an annoyance.

The factory cup holders are a good example of a small thing with an outsized effect. They don't hold a modern drink, so you either brace it with your knee, hold it, or watch it go over on the first corner. That's a reach problem, a distraction problem, and a mess problem all at once. Adjustable cup holders fix the retention part, and the Console Combo handles the height and the drinks together. The install details, including the console trimming that's required, are in how to add cup holders to a Squarebody.

Same idea with everything else you carry. If your phone, keys, flashlight, and registration end up on the seat or the floor, you're reaching and looking away from the road. Giving that stuff a home is an ergonomic fix, not a decorating one. We cover the whole cab in Squarebody storage solutions that work.

Fix Number Four: The Controls You Use Without Looking

Anything you operate while driving should be findable by feel. That means switches you can hit without hunting, a radio you can adjust without staring at it, and controls that aren't buried behind the wheel or under your knee.

A dash with five toggle switches drilled wherever there was open metal isn't just ugly — it's an ergonomic problem, because you have to look down to find the right one. Same with a phone mount that forces you to look across the cab, or a radio you can't work with dirty hands. Giving every control a deliberate, reachable home is what separates a cab that's sorted from one that's just full of parts. That's the whole idea behind Squarebody dash accessory ideas.

Different Trucks, Different Priorities

A lifted truck on 35s that sees dirt every weekend has different ergonomic needs than a restored C10 that cruises town. The trail truck cares about drink retention that survives an off-camber climb, secure storage, and controls you can find while bouncing. The street truck cares more about long-drive posture, armrest height, and a cabin that isn't fatiguing on the highway.

Neither is wrong. The mistake is buying generic universal accessories and hoping. Most don't fit the cab right, they look tacked on, and they solve one issue while creating another — a phone mount that blocks a vent, a console that fouls the shifter, an organizer that rattles. Your body notices bad placement immediately, which is exactly why ergonomics is where universal parts get exposed fastest.

Work the Friction Points, Not the Catalog

If you want the biggest return here, stop thinking about decorating the cabin and start thinking about friction. What annoys you every single drive? What are you reaching for? What slides, spills, or forces you to lean and adjust?

Fix those in order. A supported driving position first, because everything else is measured from it. Then somewhere to rest your arm. Then the things you reach for. Then the controls. That order matters, because a perfect console won't help if you're sunk into a collapsed seat, and the nicest seat in the world won't stop you sitting twisted if your arm has nowhere to go.

None of this is flashy. It's the kind of thing you appreciate every time the key turns and you realize you're not fighting the truck anymore. A Squarebody doesn't need to feel modern to feel right. It just needs an interior that works with your body instead of against it.
