Everything you need to run and hide a full lighting and accessory control system in your Squarebody — my 5" center console lift bundled with the Auxbeam KS-80 RGB switch panel.

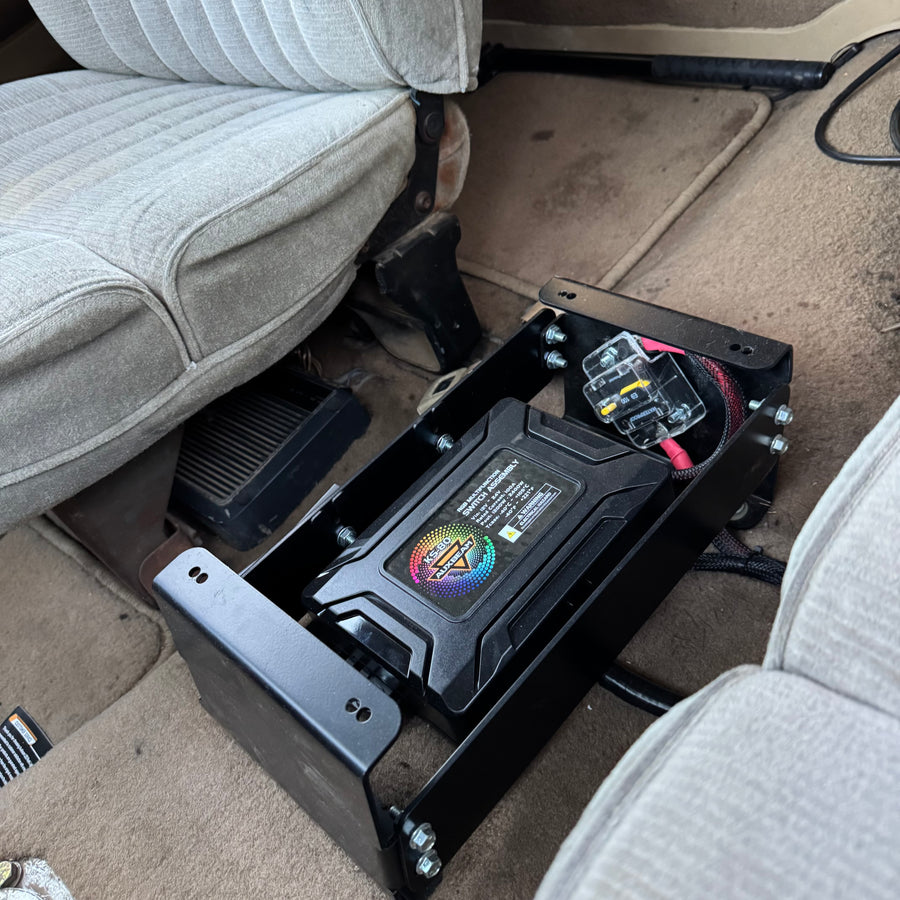

Here's the idea: my console lift raises your factory console 5" and opens up a pocket of hidden storage underneath. That space is the perfect spot to mount and hide the KS-80's control box and wiring — clean, tucked away, out of sight. The knob panel mounts up where you can reach it, the brains hide in the lift. Comfort up top, control underneath.

WHAT THE KS-80 DOES

The KS-80 is an 8-position switch panel and light controller — one knob to run whatever you want to wire up. Lights, light bars, pods, fuel pump, horn, air compressor, whatever's on your build. It's rated for 120A total (3×30A + 4×20A + 1×10A) on solid-state relays, so it handles real loads.

- 8 gangs — hook up 8 separate accessories
- RGB backlit knob — change the panel color to match your interior, adjust brightness day or night
- Master dimming on your lights
- Toggle, momentary, pulsed, and SOS modes
- One-touch strobe and chase effects across your lights
- Four external triggers — sync with high beams, reverse, brakes, and hazards
- DRL auto-start — lights come on with ignition, no extra switch
- IP65 waterproof, 12–24V, 3-year Auxbeam warranty
- Includes the knob panel, a 3.94ft extension cable, and 160 universal labels

THE CONSOLE LIFT

Fabricated steel, built to take abuse, trail-tested in my own rig. Raises your factory console 5" for a real armrest and cup holders right where your hand falls — and gives you the hidden bay to run the controller. Grade-5 zinc bolts and locking hardware included. Bolts to your factory floorboard mounts with your factory hardware, then your console bolts to the lift. No cutting, no trimming, no drilling.

Pick your finish: raw steel to finish your way, or powder-coated black for a clean, done look.

FITMENT

Console lift fits 1981–1991 Chevy/GMC K5 Blazer, Jimmy, and Suburban with the factory center console. The KS-80 panel works in any 12–24V vehicle.

THE BLAZIN' BIDDLES GUARANTEE

- If it's wrong, it's on me — I fix it, 100%, at no cost to you.
- 3-year warranty on the lift. The KS-80 carries Auxbeam's own 3-year warranty.
- Questions before you buy or mid-install? You reach a real person who actually knows these trucks — text me at 530-327-8811.

Raise it up, wire it clean, and run your whole build from one knob.
