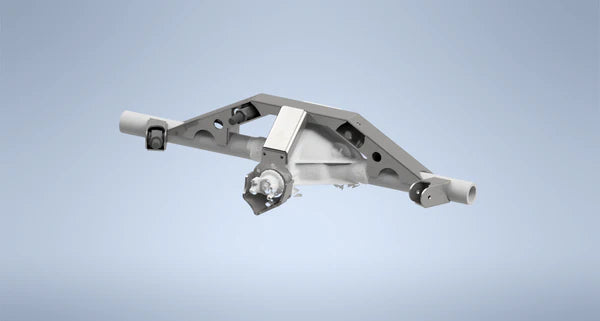

CFM Industries GM 14 Bolt Full Float Axle Truss System

Strengthen your rear axle setup with this low-profile GM 14 bolt full-float axle truss system designed for serious off-road and custom suspension builds. Engineered for dual triangulated 4-link configurations, this system provides the strength, rigidity, and link mounting structure needed for high-articulation suspension setups.

Built from formed plate steel with a boxed truss design and massive integrated pinion protection, this setup is designed to handle hard off-road use, large tires, and high-load suspension systems.

What’s Included

• Axle truss system
• Lower link mounts
• Ultra-duty pinion guard
• Pinion guard truss tie-in structure

Features and Benefits

• Designed for GM 14 bolt full-float rear axles
• Low-profile truss design for improved clearance
• Engineered for dual triangulated 4-link suspension setups
• Boxed truss construction for maximum strength
• Integrated ultra-duty pinion guard protection
• Designed for aggressive off-road and rock crawling use
• Heavy-duty formed steel construction throughout

Construction Details

• Truss fabricated from 1/4-inch P&O mild steel
• Lower link mounts made from 1/4-inch P&O mild steel
• Pinion guard tie-in built from 1/4-inch P&O mild steel
• Main pinion guard formed from massive 3/8-inch steel
• Lower link mounts set at 24-degree angle for triangulated lowers
• Designed for joints with 2-5/8-inch mounting width and 9/16-inch hardware

Fitment

Designed for GM 14 bolt full-float rear axles.

Available Options

• Partial welding available from CFM Industries
• Optional weld-through primer coating available

Installation

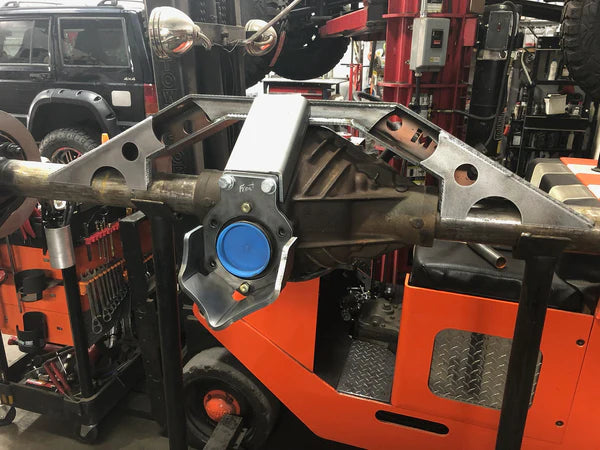

• Ships as flat and formed plates ready for welding
• Professional fabrication and welding recommended
• Designed for custom suspension and linked axle builds
• Weld-through primer recommended inside boxed sections before final assembly
• Axle housing not included

Why This Upgrade Works

A linked suspension setup is only as strong as the axle structure supporting it. This truss system reinforces the axle housing, improves link mounting strength, and adds serious pinion protection for demanding off-road use and high-articulation suspension systems.
